Description

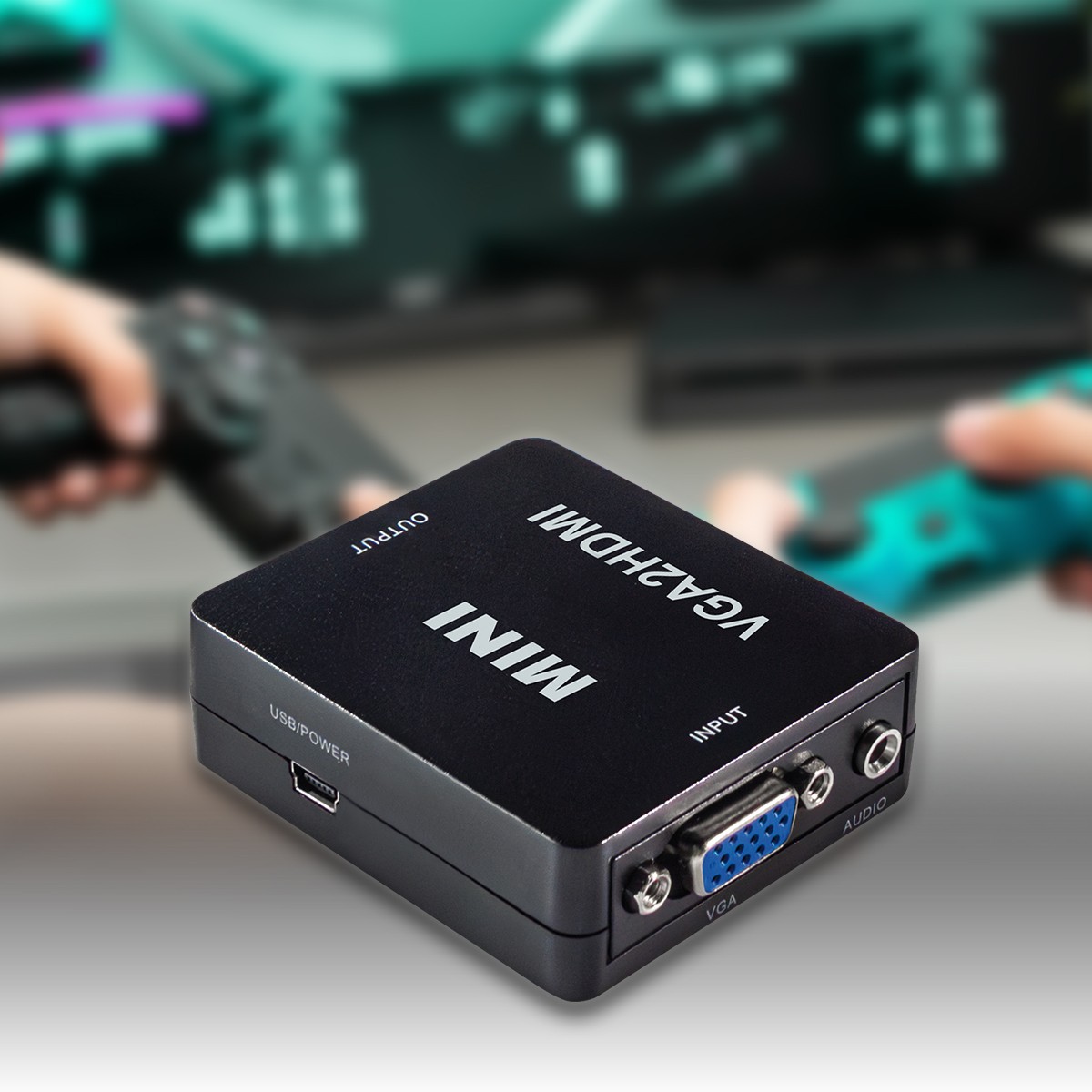

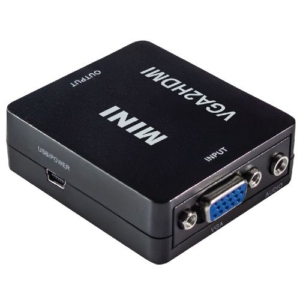

MINI VGA+Audio(R/L) to HDMI Converter
Converter VGA Female + Audio stereo 3.5mm jack input to HDMI Female output

Description:

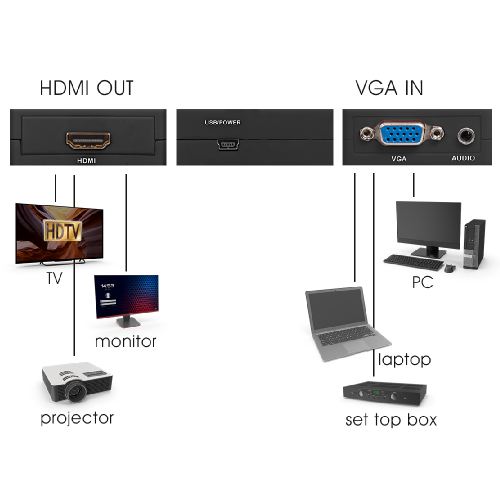

The mini VGA2HD converter is a universal converter for converting PC video and audio signals (from a computer or laptop) to HDMI format for HD displays (projectors, monitors or TVs with HDMI port). Making video come alive, delivering the sharpest, most realistic HD visuals available.

This VGA to HDMI Converter allows VGA+R/L signal to be converted easily to HDMI signal.

Features:
● Mini Size Converter
● Portable, flexible, plug and play
● VGA+R/L input signal convert to TMDS signal which supports HDMI

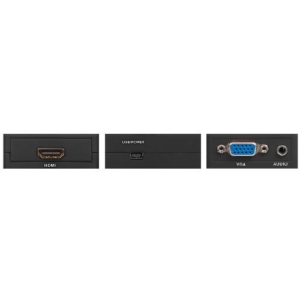

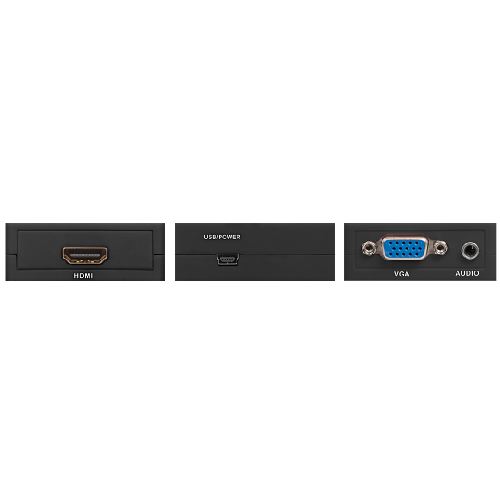

● Video Input: 1 x VGA female (analog VGA 15-pin jack)
● Audio Input: 1 x Audio jack port 3.5mm R/L (analog)
● Video/Audio Output: 1 x HDMI female, support up to 1920×1200, same format as input
● LED indication: signal source is working or the Micro USB is powered, the LED lights up
● Support output up to 10 metres AWG26 HDMI cable
● No loss of quality
● Power port: 1 x Mini USB power port female (1x charging cable USB to mini-USB for 5V DC, included)
● No need to install drivers
● Low power

Specifications:
● VGA Input: Support SXGA/SGA/UGA (60Hz)
● Audio Input: 3.5mm R/L (analog)
● HDMI Output resolution: Support up to 1920×1200/60Hz
● Max bandwidth: 165Mhz
● Max baud rate: 1.65Gbps
● Output cable distance: ≤10m AWG26 HDMI standard cable
● Input Video signal: 0.5~1.5Volts p-p
● Output DDC signal: 5Volts p-p (TTL)
● Max working current: 500mA
● Power adapter format: DC5V/500mA
● Operating Temperature range: (-15 to +55°C)
● Operating Humidity range: 5 to 90%RH (No Condensation)
● Dimension (L x W x H): 63x56x15 (mm)
● Weight: 33g

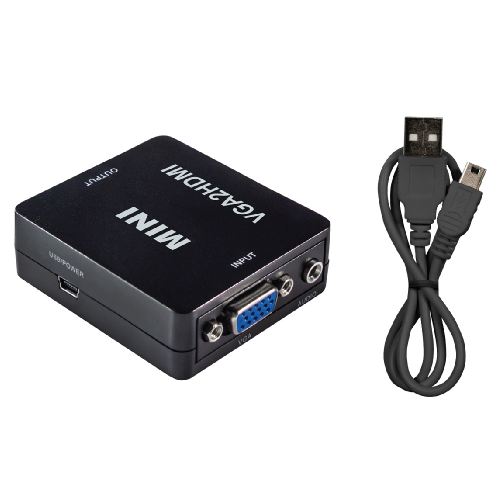

Set Contents:
● VGA to HDMI converter
● Micro USB cable
● User Manual
