SMC800B

Description

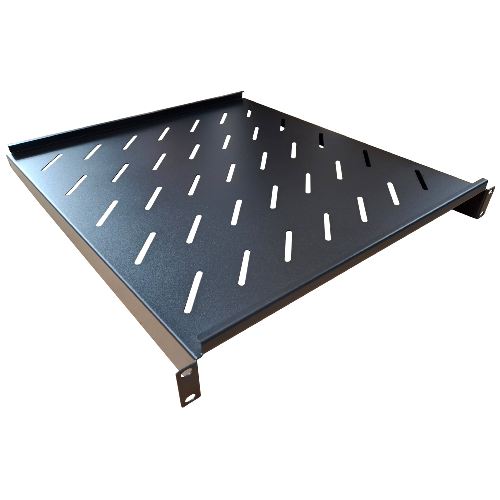

SMC800B – 500mm Deep steel vented 1U Cantilever Shelf  for 800mm depth 19″ cabinets

Universal fixed cantilever shelf, 500mm Deep. Max Load: 20kgs, Color: Black
Description:
As a cabinet accessory, the cantilever plate allows the overhang structure to be unsupported, and the overall structure is more flexible and unlimited.

19″ 1U Cantilever Shelf with depth of 500mm, is perfect for supporting non-rack mountable equipment such as routers, modems or monitors. This shelf is designed to fit into virtually any 19″ rack with at least 800mm depth. It is made from high quality Cold Rolled Steel with an Electro-static Powder Coated finish, can hold up to 20kg of equipment and feature slotted vents to reduce the possibility of overheating and to allow for tie-down of equipment. Comes with necessary mounting hardware.

● VERSITILE: Made from Cold Rolled Steel, this 1U 2 Post vented shelf was designed to hold 20kg and can be mounted to any cabinet
● CONVENIENT: Features venting for maximum airflow making this shelf the perfect addition to your rack. Common uses include holding and storing routers, cable modems, keyboards, or any other networking or AV equipment
● COMPATIBLE: This shelf takes up 1 Rack Unit (1RU) and is compatible with any EIA Standard 19″ server rack, bracket or cabinet

Features:
● 19“ rack mountable, 1U fixed cantilever shelf
● Design Style: Fixed Mount
● Shelf Dimensions (mm): 44.5H x 445W x 500D
● Mounts to 2 vertical rails (posts) of the cabinet, 2-corner support (1U requires four anchor points)
● Degree of protection: IP20
● Thickness: Mounting profile 1.2 mm
● Maximum 20kg distributed load capacity
● Material: Cold Rolled Steel (SPCC)
● Surface finish: Degreased, Salinization and Powder coating paint finish
● Color: black (RAL9004)
● Mounting Hardware: Included

What are the advantages of the cantilever shelf?
(1) The cantilever shelf is compatible with standard 19-inch rack cabinets.
(2) These fixed shelves are an ideal solution for securing devices such as keyshelfs or other electronic devices.
(3) The ventilation slot allows sufficient air circulation, especially when storing equipment that is prone to overheating.
(4) Made of 1.2 mm steel, it ensures frame construction and powder coating, ensuring durability and corrosion resistance even in extreme environments.
(5) In addition, powder coating provides a smooth surface that is easy to keep dust and debris clean. This dust and debris can affect the performance of any equipment stored on the shelves.
(6) This fixed cantilever shelf uses 19-inch components and four anchor points for secure mounting inside the server rack for safe device placement.
