SMW-6615

Description

SMW-6615 – Wall Mount 19″ rack cabinet 15U, depth 600mm, lockable tempered glass front door, color black
*PRE-ASSEMBLED*

Features:
Steel cabinet for telecommunication & networking, industrial standard 19 inch
● 15U
● Optimized 19″ standard width
● Height: 769 mm
● Width: 600 mm
● Depth: 600 mm
● Advance technology: precise size
● Lockable via keys front door (with push lock), and both sides
● Removable side panels for easy access when adding equipment and cabling
● 3mm Toughened glass front door
● Blue ornament strip
● Plenty of vents allow sufficient air to flow from bottom to top
● Wall type frame with provision of cable entrance from top and bottom
● Quick and easy wall mounting
● IP degree: IP20
● Horizontal “L” supports, 2pcs
● High static loading capacity 70 kg
● Material: SPCC quality cold rolled steel
● Structure: Welded frame
● Material thickness: Mounting profile: 1.5mm, Side panel: 1.0mm, others: 1.2mm
● Surface Finish: Degrease, acid pickling, silanization, rust prevention and parkerizing pure water cleaning, static electricity powder coating paint finish
● Color: Black (RAL9004)
● Complies with UL, ROHS, certifications

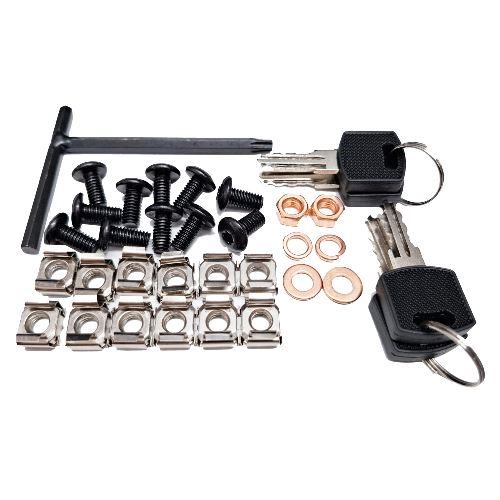

● Cage nuts and tool star screwdriver T25+Allen Key #5 included
● Shelves not included
● Cooling fans not included
● Pre-assembled

Standard Specifications:
● ANSI/EIA RS-310-D
● IEC60297-3-100
● DIN41494; PART1
● DIN41494; PART7
