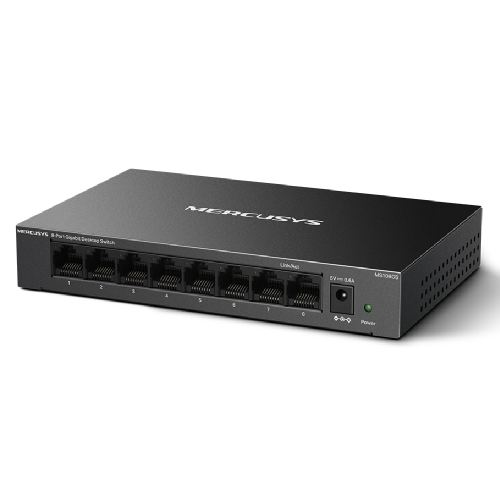

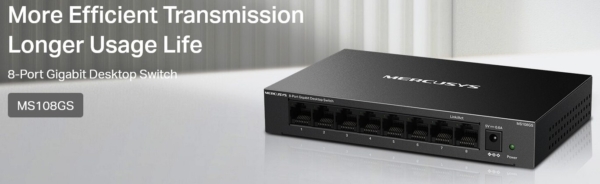

Mercusys MS108GS – 8 port Gigabit Ethernet Switch
MS108GS
Description
Description
Mercusys MS108GS – 8 port Gigabit Ethernet Switch
Overview:

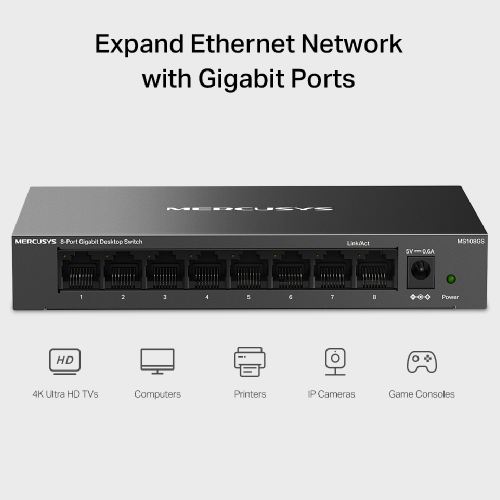

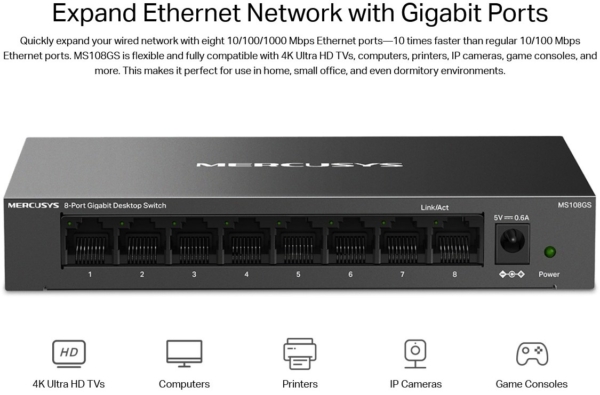

Full Gigabit Ports: 8× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX

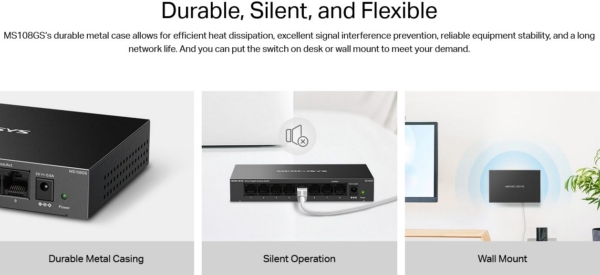

Multiple Installation Operation: Steel housing, desktop or wall-mounting design
Durable Metal Casing: Allows for efficient heat dissipation and long network life

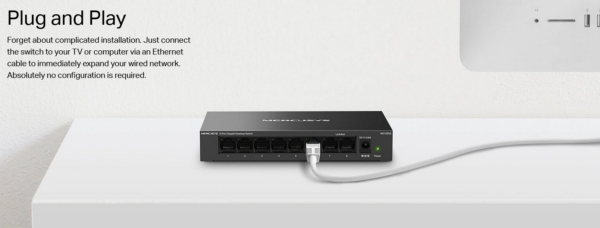

Plug and Play: Simple to use and saves time and effort

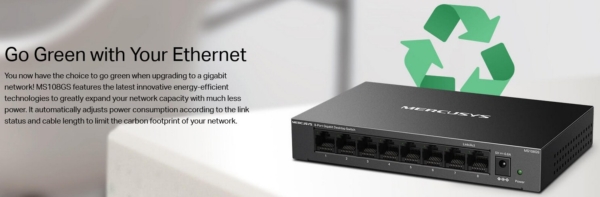

Power Saving: Green Ethernet technology saves power
Features:
• 8× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Steel housing, desktop or wall-mounting design
• Allows for efficient heat dissipation and long network life
• Simple to use and saves time and effort
• Green Ethernet technology saves power
| Specifications: | |
| Hardware | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Dimensions | 158 x 99.1 x 25.2 mm |
| Interfaces | 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX |
| External Power Supply | 5V/0.6A |
| Installation | Desktop |
| Wall Mount | |
| Data Rates | 10/100/1000 Mbps at Half Duplex |
| 20/200/2000 Mbps at Full Duplex | |
| Buffer Capacity | 4 Mbit |
| Jumbo Frame | 15 KB |
| LED | Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power |
| Software | |
| Transfer Method | Store and Forward |
| Management | Plug and Play |
| Advanced Features | 802.3x Flow Control |
| 802.1P/DSCP QoS | |
| IGMP Snooping V1/V2/V3 | |
| Green Ethernet | |
| Others | |

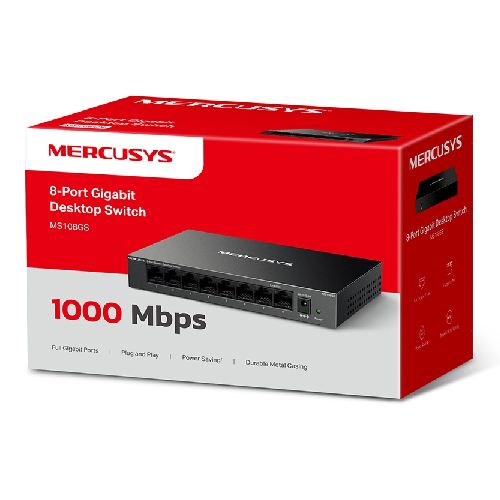

| Package Contents | • 8-Port Gigabit Desktop Switch (MS108GS) |
| • Power Adapter | |
| • Quick Installation Guide | |
| Environment | 0°℃~40°℃/10% ~ 90% RH, Non-Condensing |
