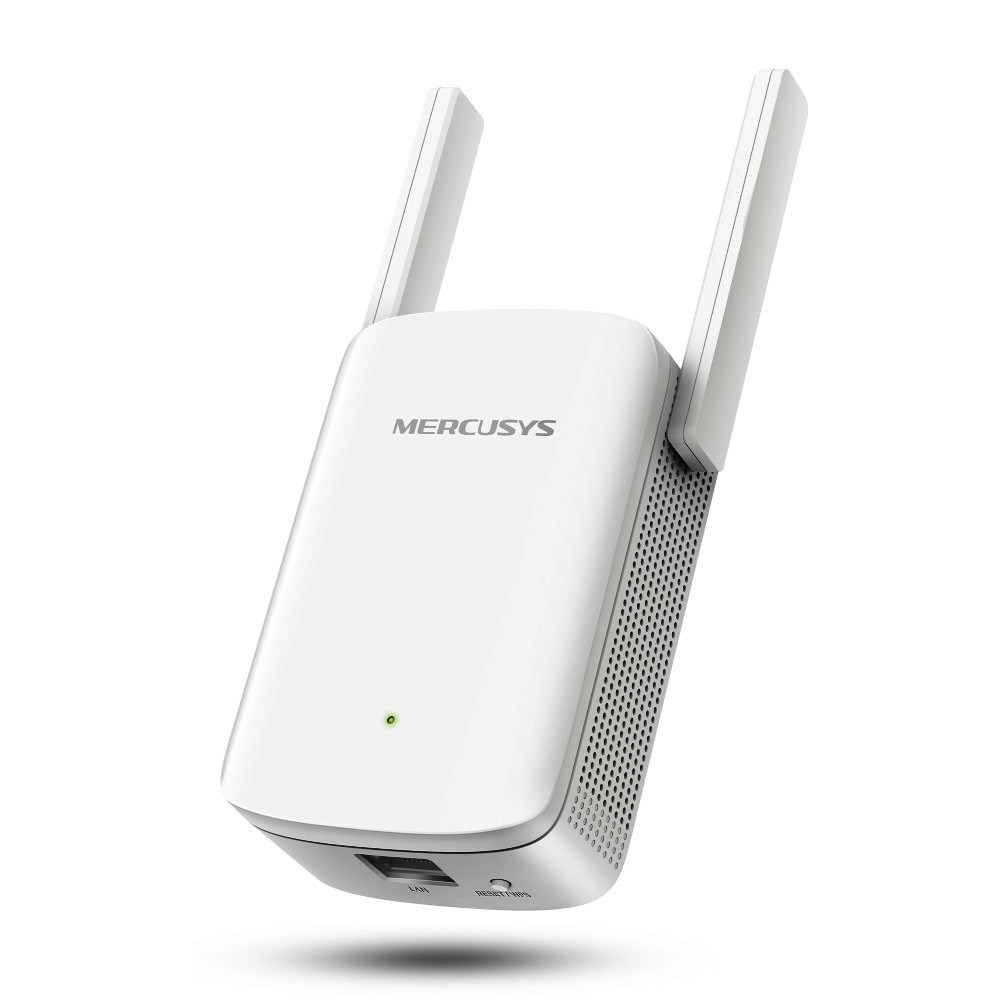

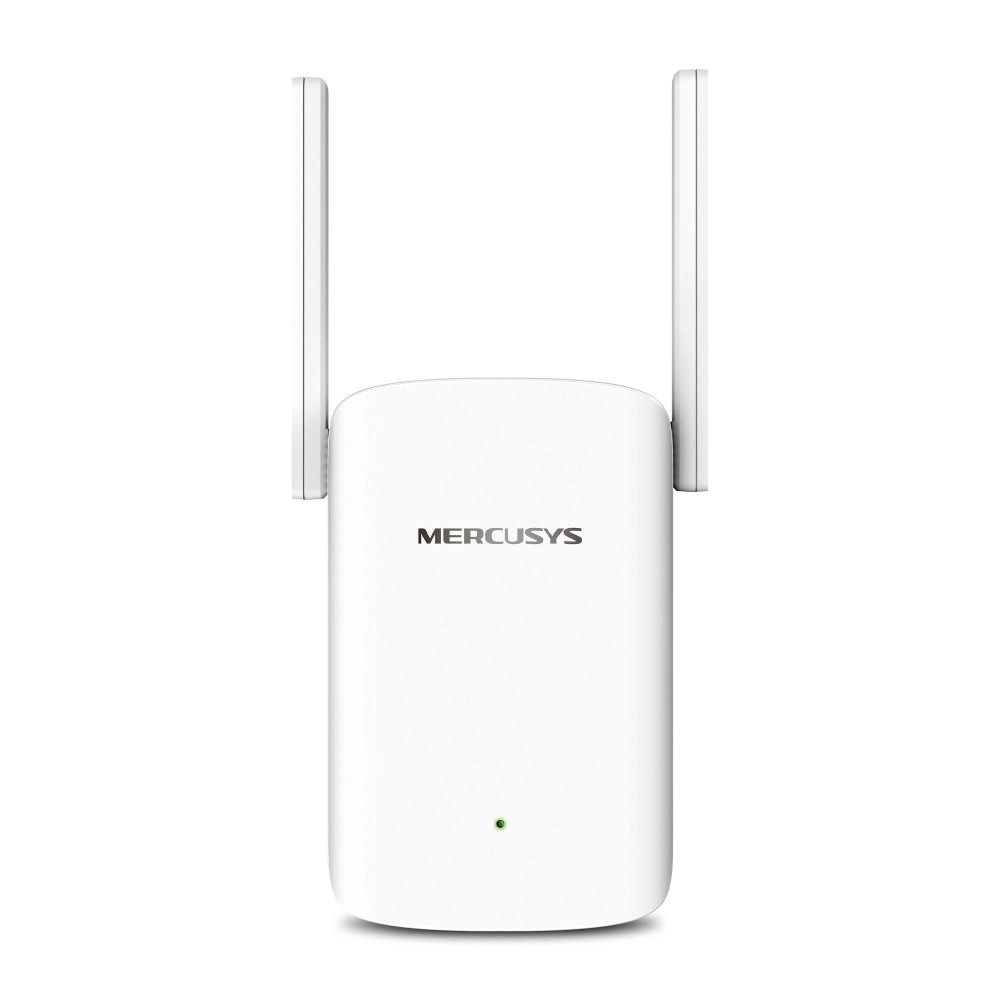

ME60X – Mercusys AX1500 Wi-Fi 6 Range Extender

Description:
Wireless AX Repeater / Access Point Wall Plugged, 2.4GHz and 5GHz, 802.11ax/ac/a/b/g/n, Ranger Extender button WPS, with External Antennas and Ethernet Port
• Faster Wi-Fi 6 Speed—Enjoy a fast extended Wi-Fi anywhere up to 1500 Mbps (1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz), ideal for 4K streaming and online gaming.

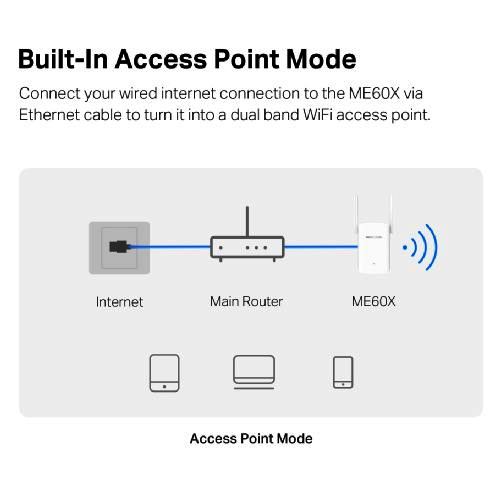

• Built-In Access Point Mode—Connect your wired internet connection to the ME60X via Ethernet cable to turn it into a dual band Wi-Fi access point.

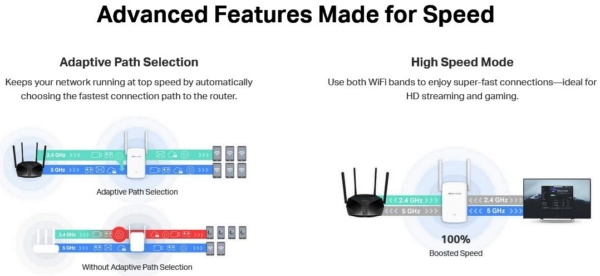

• Adaptive Path Selection—ME60X keeps your network running at top-speed by intelligently choosing the best available route and band for your data.
• Access Control—Allows you to set blacklist or whitelist for specific devices about accessing the internet for a specific time.

Features:
● Dual Band Speeds up to 1500 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
● Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
● Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS.and game consoles.

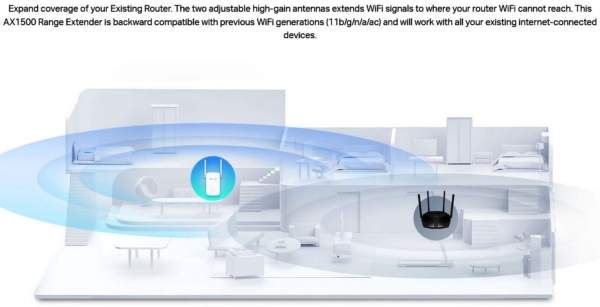

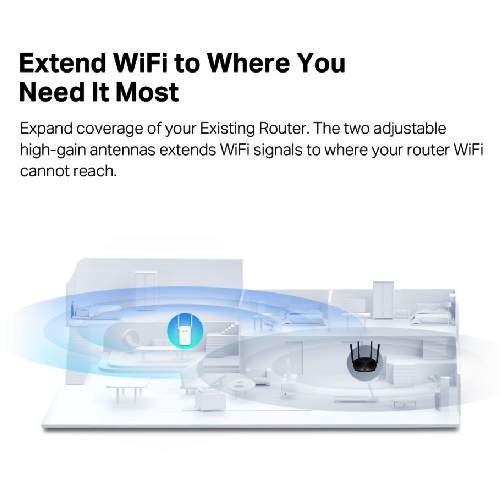

● Works with Any Routers – To Extend WiFi to Where You Need It Most.

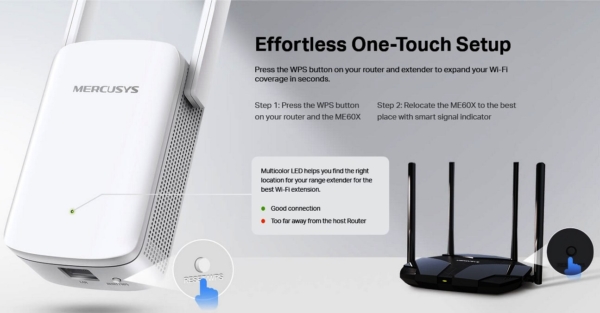

● Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
● Built-In Access Point Mode – Works as RE mode and AP mode.
● Manage Your Network with App – Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

| Specifications: | |
| Wireless | |
| Wi-Fi Class | AX1500 |
| Wi-Fi (2.4 GHz) | 300Mbps |
| Wi-Fi (5 GHz) | 1201Mbps |
| Wireless Standards | 802.11ax/ac/a/b/g/n |
| Max Channel Width | 80MHz |
| Reception Sensitivity | 5 GHz: |
| 11ax HE80 MCS0: -88 dBm | |
| 11ax HE80 MCS11: -58 dBm | |
| 11a 6Mbps: -94 dBm | |
| 11a 54Mbps: -76 dBm | |
| 11ac VHT80 MCS0: -91dBm | |
| 11ac VHT80 MCS9: -63dBm | |
| 2.4 GHz: | |
| 11g 6Mbps: -95 dBm | |
| 11g 54Mbps: -77 dBm | |
| 11n HT40: -72dBm | |
| Max Wi-Fi Modulation | 1024 QAM |
| Wireless Security | WPA, WPA2, WPA3-PSK |

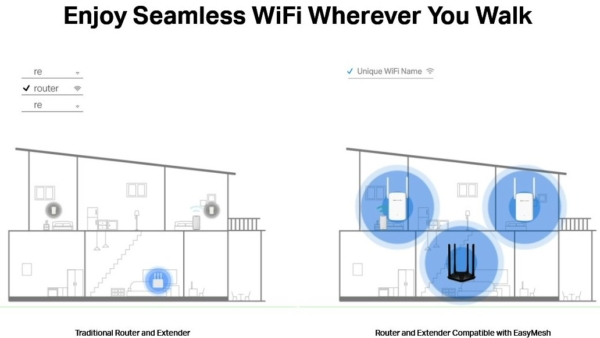

| Wireless Functions | EasyMesh |
| Beamforming | |
| Hardware | |
| Dimensions | 84.7×39×112 mm |

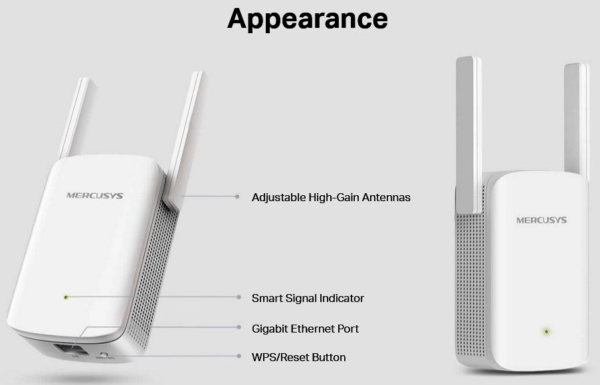

| Interfaces | 1 Gigabit Ethernet Port |
| Antenna | 2× External Antennas |
| Button | 1× RESET/WPS Button |
| Power Supply | 10W |
| Installation | / |
| LED | 1× SYS |
| Retail Package Dimension | 152*123*102.5 mm |
| Max Power Consumption | 10W |
| Software | |
| Operation Mode | RE/AP |
| WAN Mode | / |
| NAT Forwarding | / |
| Protocols | IPv4/IPv6 |
| IPTV | / |
| Guest Network | 2.4G Guest Network |
| 5G Guest Network | |
| Parental Controls | / |
| DHCP | Server |
| DHCP Client List | |
| DDNS | / |
| QoS | / |

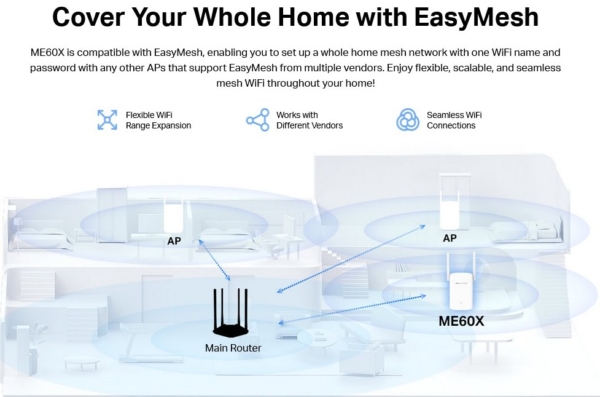

| Easymesh | EasyMesh Compatible |
| Security | Access Control |
| ISP Feature | / |
| System | Time Settings |
| LED Control | |
| Firmware Upgrade | |
| Backup&Restore | |
| Reboot | |
| Administration | |
| System Log | |
| Diagnostics | / |
| LED Management | LED Control |
| Night Mode | |
| Device Management | MERCUSYS APP |
| Webpage | |
| Cloud | MERCUSYS ID |
| Auto Update | |
| Online Update | |
| Language | Bulgarian |
| Czech | |
| Danish | |
| German | |
| Greek | |
| English | |
| Spanish | |
| Finnish | |
| French | |
| Hungarian | |
| Indonesian | |
| Italian | |
| Japanese | |
| Korean | |
| Dutch | |
| Norwegian | |
| Polish | |
| Portuguese | |
| Portuguese – Brazil | |
| Romanian | |
| Russian | |
| Slovak | |
| Swedish | |
| Turkish | |
| Ukrainian | |
| Vietnamese | |
| Chinese – Taiwan | |
| Advanced Features | / |
| Others | |
| Network Services Enabled by Default | Web Server |
| Manage and configure device through web (HTTP/HTTPS) | |
| • Port: 80/443 Protocol: TCP | |
| – | |
| DHCP Server | |
| IP address assignment (DHCP) | |
| • Port: 67 Protocol: UDP | |
| – | |
| App management | |
| Manage and configure device through app | |
| • Port: 20001 Protocol: TCP | |
| • Port: 20002 Protocol: UDP | |
| – | |
| Package Contents | • Wi-Fi Range Extender ME60X |
| • Quick Installation Guide | |
| – | |
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) |
| • Operating Humidity: 10%~90% Non-Condensing | |
| – | |
