MERCUSYS MR27BE – BE3600 Dual Band Wi-Fi 7 Router
Description
Description
MERCUSYS MR27BE – BE3600 Dual Band Wi-Fi 7 Router

Overview:

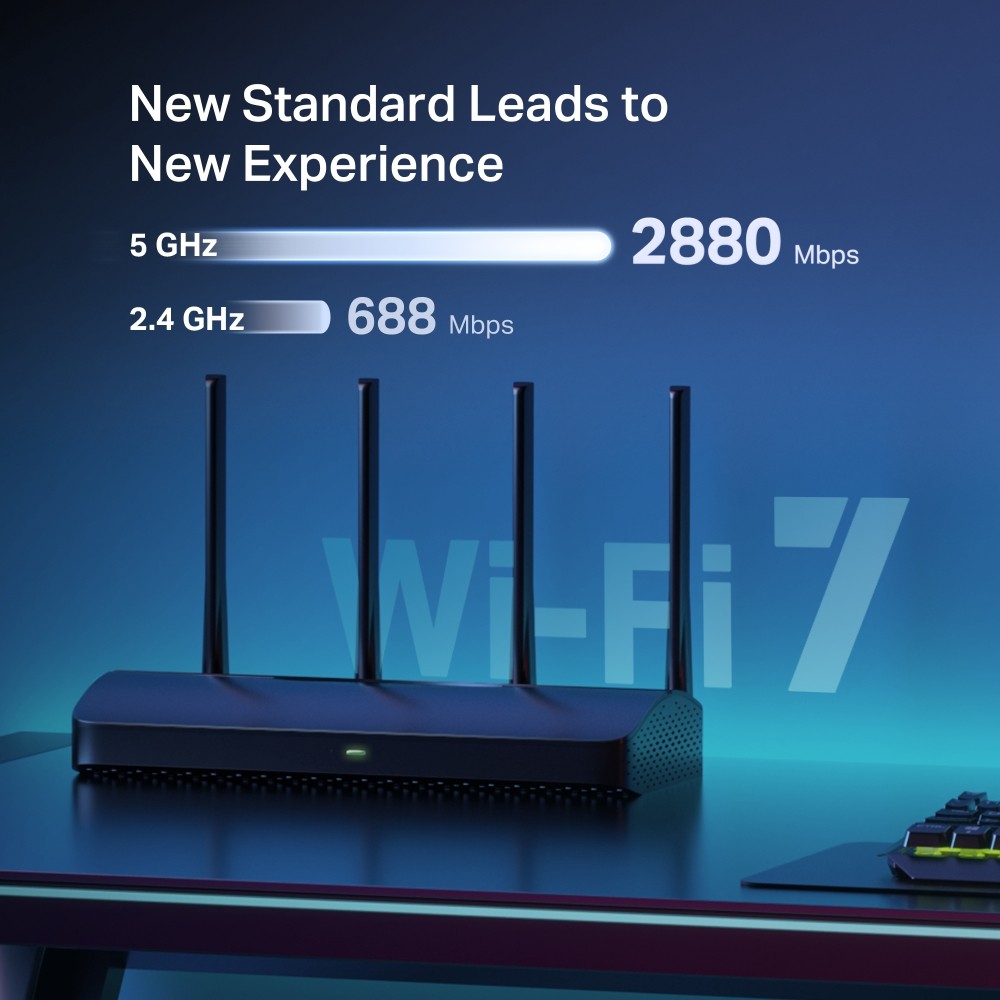

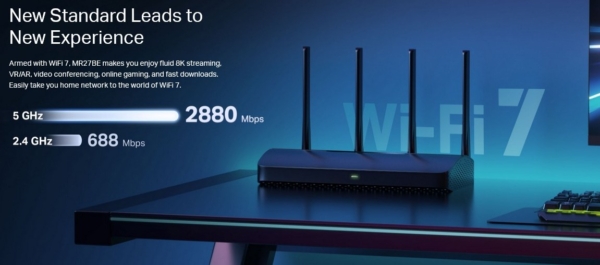

Fast 3.6 Gbps Dual Band Wi-Fi 7
With up to 160 MHz channels, 4K-QAM, and MLO(Multi-Link
Operation), MR27BE improves Wi-Fi speeds to 3.6 Gbps.
Experience unlimited 8K streaming and lightning-fast
downloading.

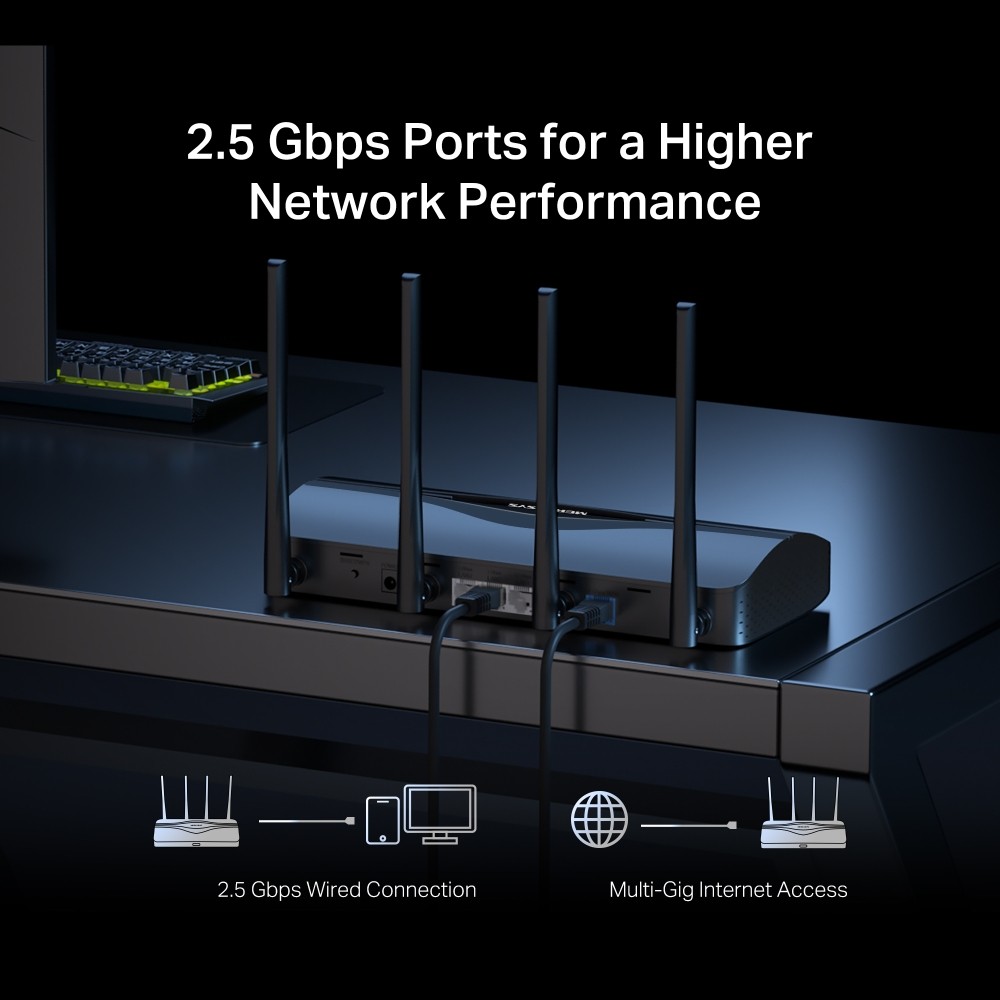

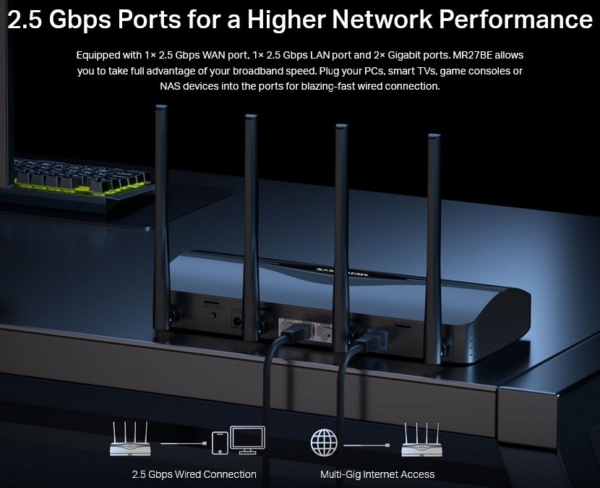

2.5 Gbps Wired Connection
Equipped with 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× Gigabit ports, MR27BE allows you to take full
advantage of your broadband speed. Plug your PCs, smart
TVs, game consoles, or NAS devices into the ports for
blazing-fast wired connections.
Secure VPN Access
Easily set up VPN client or server modes directly on the router. Ideal for secure remote access, private browsing, and major protocols compatibility, including WireGuard, OpenVPN, L2TP/IPSec, and PPTP.

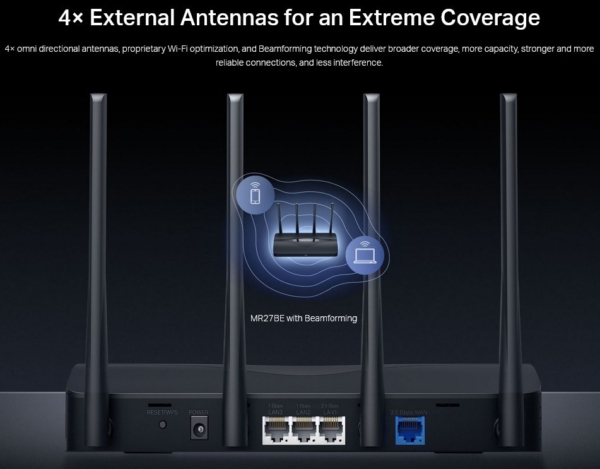

Wider Wi-Fi Coverage
4× omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.
AI-Powered Smart QoS
Powered by AI algorithms to intelligently identify traffic in real time and allocate network resources. Minimizes latency for smoother connections, keeping gaming, streaming, and video calls at peak performance.

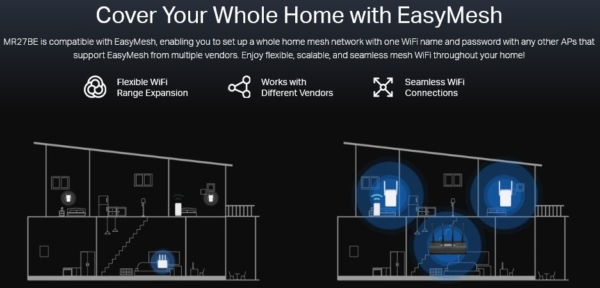

EasyMesh-Compatible
MR27BE is compatible with EasyMesh for a smooth whole home mesh Wi-Fi network, preventing drops and lag when switching signals. Enjoy uninterrupted streaming while roaming your house.
Highlights:

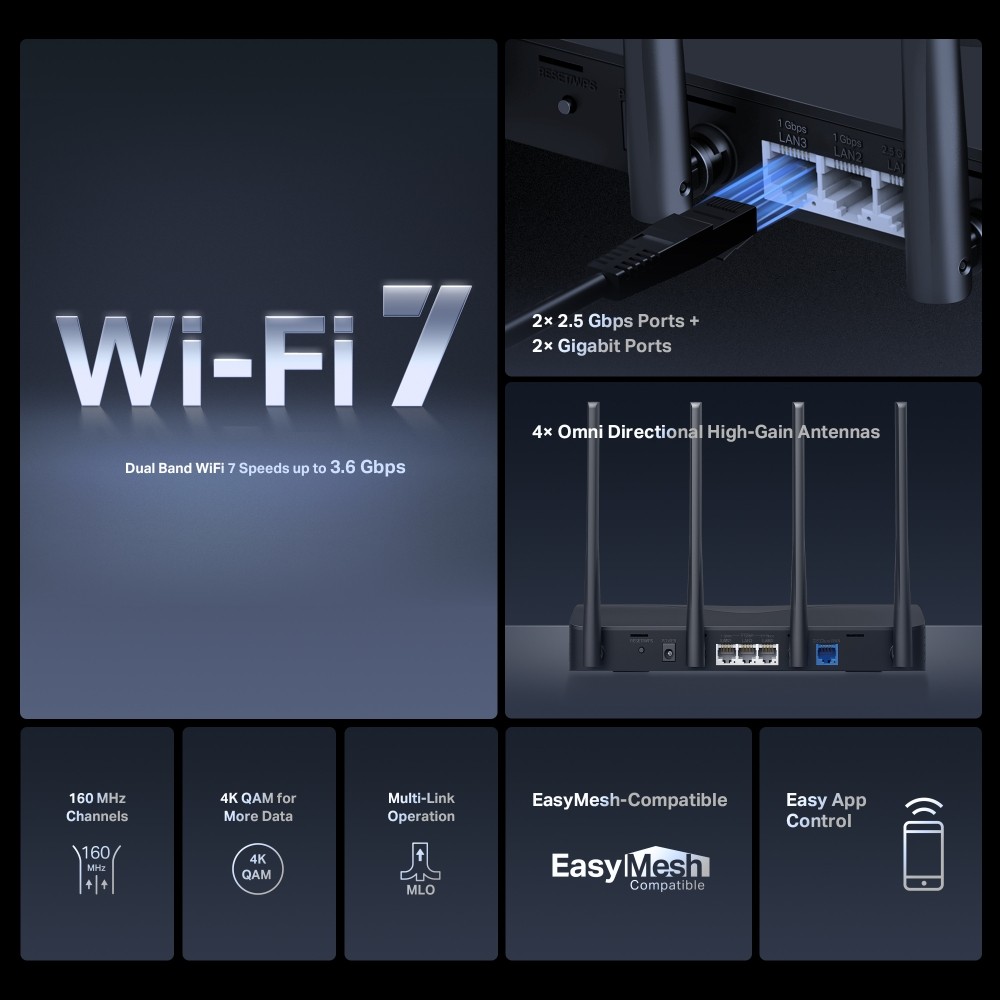

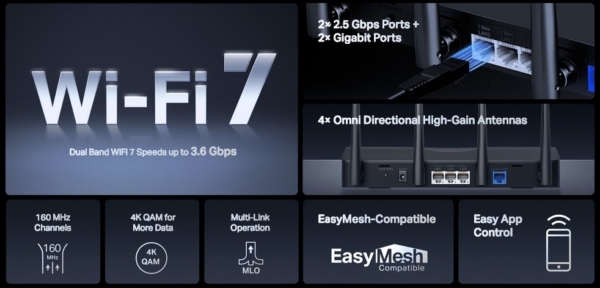

• Amazing 3.6 Gbps Dual Band Wi-Fi 7
• 4× Omni Directional Antennas for Wider Coverage
• 2.5 Gbps Ports for Higher Performance
• Easy Setup with the MERCUSYS App

● Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
● Newest Wi-Fi 7: Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.
● Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
● 2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
● Maximized Coverage: 4× Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.
● EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.

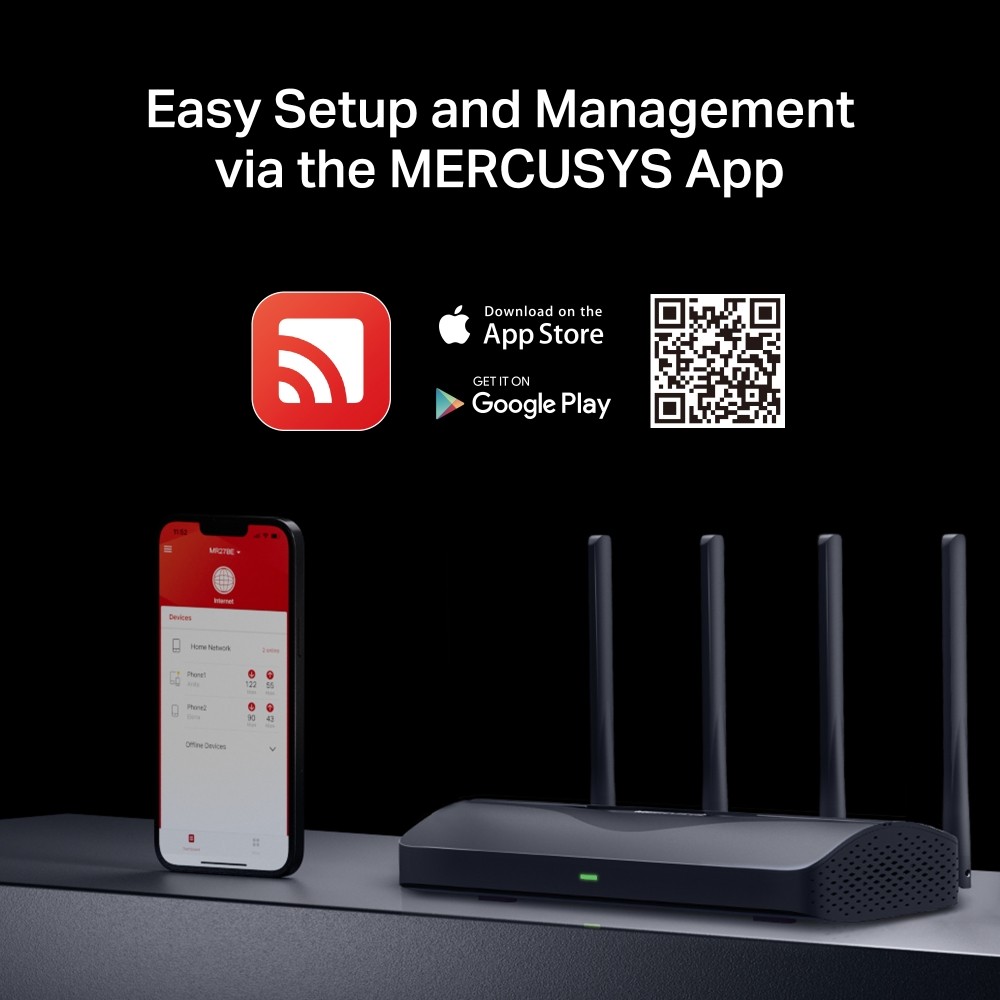

● Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
Features:
● Parental Controls: Establish appropriate policies to
protect children with responsible, safe internet access
● Access Point Mode: Extends a wired network and makes it wireless
● Guest Network: Provides a separate network for guests to ensure your security and privacy
● IPTV Support: Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
● Overall Security Protection: The latest security standard,
WPA3, provides improved comprehensive Wi-Fi protection
● IPv6 Support: Allows you to visit IPv6 websites and enjoy IPv6 services provided by your ISP services provided by your ISP
| Specifications: | ||
| Wireless | ||
| Wi-Fi Class | BE3600 | |
| Wi-Fi (2.4 GHz) | 688Mbps | |
| Wi-Fi ( 5 GHz) | 2880Mbps | |
| Wireless Standards | 802.11be/ax/ac/a/b/g/n | |
| Max Channel Width | 160MHz | |
| Reception Sensitivity | 5G: | |
| 11ac VHT20_MCS0:-97dBm, 11ac VHT20_MCS8:-75dBm | ||
| 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm | ||
| 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm | ||
| 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm | ||
| 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm | ||
| 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-66dBm | ||
| 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-63dBm | ||
| 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-59dBm | ||
| 11be EHT20_MCS13:-61dBm | ||
| 11be EHT40_MCS13:-59dBm | ||
| 11be EHT80_MCS13:-55dBm | ||
| 11be EHT160_MCS13:-52dBm | ||
| 2.4G: | ||
| 11ax HE20 MCS0:-97dBm,11ax HE20 MCS11:-68dBm | ||
| 11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-65dBm | ||
| 11be EHT20 MCS13:-61dBm,11be EHT40 MCS13:-59dBm | ||
| Max Wi-Fi Modulation | 4K QAM | |
| Wireless Security | WPA/WPA2/WPA3 | |
| Wireless Functions | Guest Network | |
| IoT Network | ||
| Smart Connect | ||
| Wireless Schedule | ||
| WPS | ||
| AP Isolation | ||
| Airtime Fairness | ||
| Hardware | ||
| Dimensions | 250 × 119 × 43.3 mm | |
| Interfaces | 1× 2.5G WAN | |
| 1× 2.5G LAN | ||
| 3× GE LAN | ||
| Antenna | 2× 5G External Antennas(5dBi) | |
| 2× 2.4G External Antennas(4dBi) | ||
| Button | 1× WPS/ Reset Button | |
| Installation | Desktop | |
| Wall-mount | ||
| LED | 1× SYS | |
| Retail Package Dimension | 328*261*74 mm | |
| IPTV | IGMP Proxy | |
| IGMP Snooping | ||
| Bridge | ||
| Tag VLAN | ||
| Power | Input: 100~240V, 50/60Hz | |
| Output: 12V/1.5A | ||
| Software | ||
| Operation Mode | Router/AP mode | |
| WAN Mode | Dynamic IP | |
| Static IP | ||
| PPPoE | ||
| PPTP | ||
| L2TP | ||
| NAT Forwarding | Port Forwarding | |
| Port Triggering | ||
| DMZ | ||
| UPnP | ||
| Protocols | IPv4 | |
| IPv6 | ||
| Guest Network | 2.4G Guest Network | |
| 5G Guest Network | ||
| Parental Controls | Profile Settings | |
| Time Control | ||
| Pause the Internet | ||
| Website Filtering | ||
| DHCP | Address Reservation | |
| DHCP Client List | ||
| Server | ||
| DDNS | MERCUSYS | |
| NO-IP | ||
| DynDNS | ||
| VPN Server | OpenVPN | |
| PPTP | ||
| L2TP/IPSec | ||
| WireGuard | ||
| VPN Client | OpenVPN | |
| PPTP | ||
| L2TP/IPSec | ||
| WireGuard | ||
| Easymesh | Easymesh Compatible | |
| QoS | Time Settings | |
| Priority Control | ||
| Security | SPI Firewall | |
| Access Control | ||
| IP & MAC Binding | ||
| Kill Switch | Support | |
| ISP Feature | CWMP | |
| ISP Preset(Agile Config) | ||
| Superadmin | ||
| System | Firmware Upgrade | |
| Backup and Restore | ||
| Administration | ||
| System Log | ||
| Time & Language Settings | ||
| Reboot | ||
| Diagnostics | Ping | |
| Traceroute | ||
| LED Management | LED Control | |
| Night Mode | ||
| Device Management | MERCUSYS APP | |
| Webpage | ||
| Cloud | MERCUSYS ID | |
| Language | Bulgarian | |
| Czech | ||
| Danish | ||
| German | ||
| English | ||
| Spanish | ||
| Finnish | ||
| French | ||
| Hungarian | ||
| Italian | ||
| Japanese | ||
| Korean | ||
| Dutch | ||
| Norwegian | ||
| Polish | ||
| Portuguese | ||
| Portuguese – Brazil | ||
| Romanian | ||
| Russian | ||
| Slovak | ||
| Swedish | ||
| Turkish | ||
| Ukrainian | ||
| Vietnamese | ||
| Chinese – Taiwan | ||
| Advanced Features | Multi-Link Operation (MLO) | |
| Multi-RUs | ||
| OFDMA | ||
| MU-MIMO | ||
| BSS Color | ||
| Beamforming | ||
| Others | ||
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) | |
| • Port: 80/443 Protocol: TCP | ||
| DNS | ||
| DNS | ||
| • Port: 53 Protocol: TCP & UDP | ||
| DHCP Server IP address assignment (DHCP) | ||
| • Port: 67 Protocol: UDP | ||
| App management Manage and configure device through app | ||
| • Port: 20001 Protocol: TCP | ||
| • Port: 30001 Protocol: TCP | ||
| • Port: 20002 Protocol: UDP | ||
| Network Services Enabled by Default | Web Server | |
| Manage and configure device through web (HTTP/HTTPS) | ||
| • Port: 80/443; Protocol: TCP | ||
| DHCP Server | ||
| IP address assignment (DHCP) | ||
| • Port: 67; Protocol: UDP | ||
| DNS | ||
| DNS | ||
| • Port: 53; Protocol: TCP & UDP | ||
| App management | ||
| Manage and configure device through app | ||
| • Port: 20001; Protocol: TCP | ||
| • Port: 20002; Protocol: UDP | ||
| Package Contents | • BE3600 Wi-Fi 7 Router MR27BE | |
| • Power Adapter | ||
| • Quick Installation Guide | ||
| • RJ45 Ethernet Cable | ||
| Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) | |
| • Operating Humidity: 10%~90% Non-Condensing | ||
| • Storage Humidity: 5%~90% Non-Condensing |
