LEGENT-HD10

Description

LEGENT-HD10 – mini DVB-T2 H.265/HEVC Full HD MPEG4 Digital Terrestrial dongle Receiver

Product Description:
LEGENT HD10 is a mini and invisible terrestrial digital receiver, Full HD resolution. It can be hidden behind the TV and comes out an IR-Display cable. It has a remote control which it can be programmed for the basic functions of the TV. In addition, it has a PVR recording function. Enjoy digital terrestrial channels with perfect picture and sound. It’s Universal Remote Control 2-in-1 for the receiver and the TV, has four TV buttons which are programmable for different brand TVs.

Technical Features:
• Type: Digital Terrestrial dongle Receiver for DVB-T2 using Ali3822p Chipset
• Decoding MPEG-4 AVC/H.264 HP@L4.1, DVB-T2 H.265 HEVC, Full High Definition
• 1000 Channels Capacity TV/Radio
• Frequency range: 170–230MHz and 470-860MHz
• Bandwidth: 5/6/7/8 MHz
• Modulation: QPSK,16QAM, 64QAM, 256QAM
• FFT Mode (Fast Fourier Transform): 1K / 2K / 4K / 8K / 16K / 32K
• Front Panel length 10,5cm. Placed behind the TV, cable IR-Led Display comes out in front of the TV

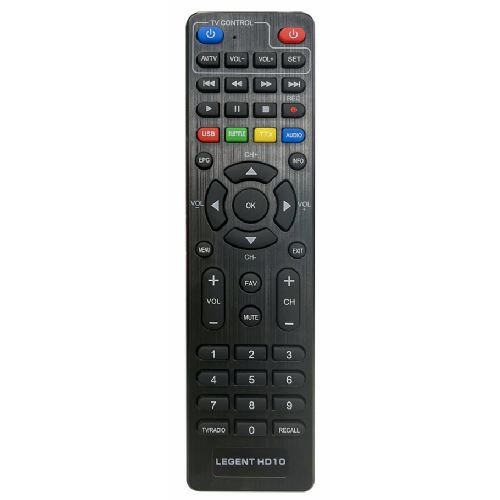

• Universal IR remote control 2-in-1 for STB & TV. It has Learning Function Remote Control, which copies the basic commands of the TV remote control
• Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1920*1080, Aspect ratio 16:9, 4:3, Auto
• Connections: RF IN, HDMI 1.2 -1.3, USB 2.0-3.0, Mini USB for IR-Led cable connection, External Power Supply 5V-2A
• Greek Menu, Greek EPG (Weekly), Greek TELETEXT VBI/OSD, Greek Manual, Menu in many languages
• USB – PVR Operations. Record – Play programs in USB Stick or External Hard Disk. Timeshift
• Play of some Multimedia files from USB disk. Video, Audio, Photo, Subtitle
• 8 Favorite Lists, Multiple Functions Menu. If the power goes out, it restarts on the same channel
• Upgrade Software via USB Stick, Save/Load Channels to USB., Backup Firmware in USB
• Edit Channels, Move, Delete, Parental Lock, Sort channels in the order desired
• Maximum Power Consumption: <6W
• Standby Power Consumption: <1W

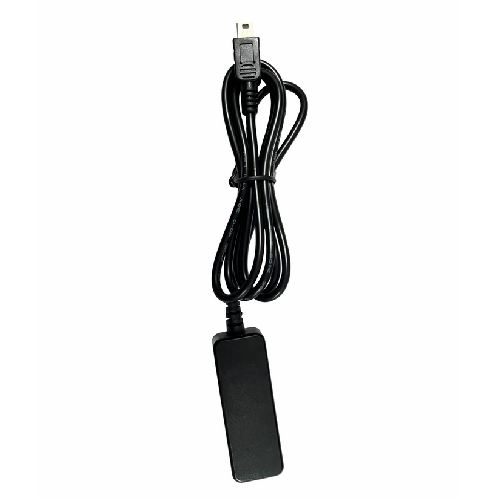

• Can be hidden behind the TV, using a IR-Display cable with channel number included with the receiver
• 20cm HDMI cable included
• Weight: 0.2kg
• Dimensions: 105mm x 38mm x 17mm
• Color: black
