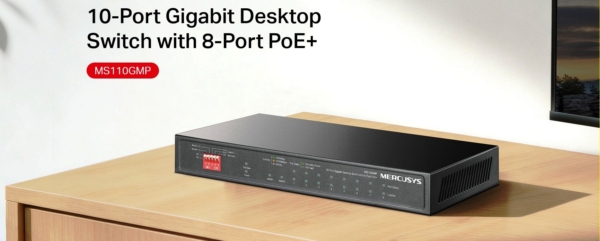

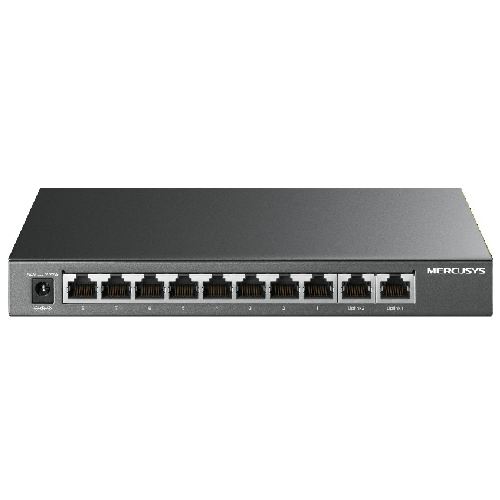

MS110GMP – 10-Port Gigabit Desktop Switch with 8-Port PoE Switch 111W
MS110GMP
Description
Description
MS110GMP – 10-Port Gigabit Desktop Switch with 8-Port PoE Switch 111W
Main Features:

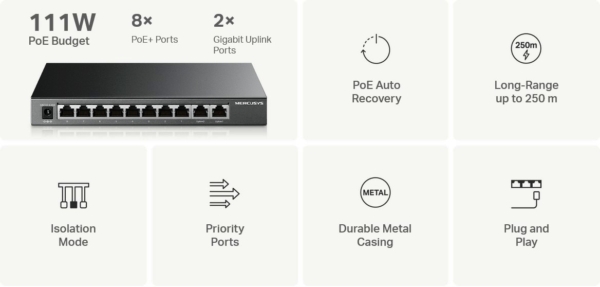

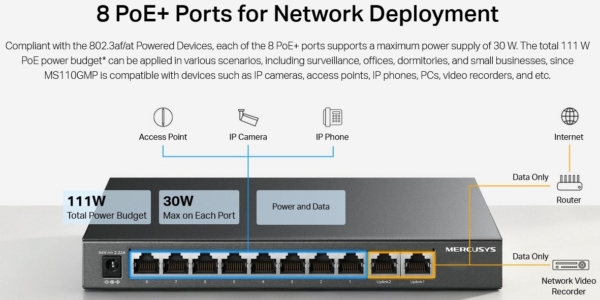

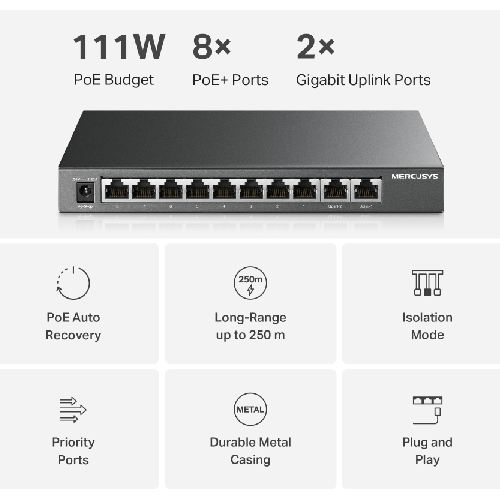

● 10 Gigabit Ports: 8× Gigabit PoE+ ports , and 2× Gigabit Uplink Ports

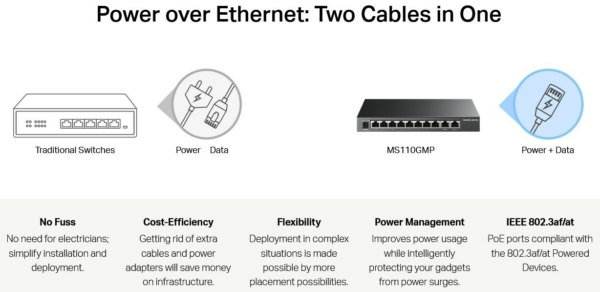

● High Power PoE+: Support PoE Power up to 30 W for each PoE port and 111 W for all PoE ports.* Works with IEEE 802.3af/at compliant PDs.

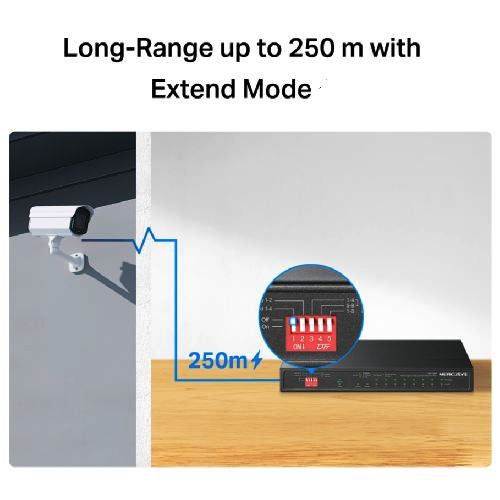

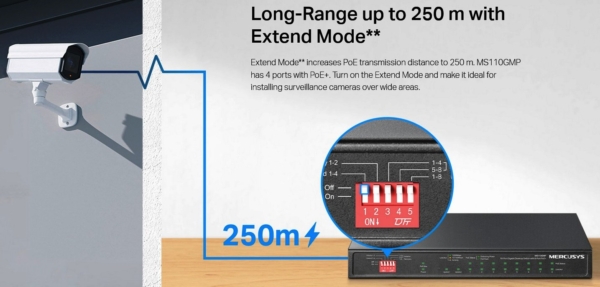

● Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

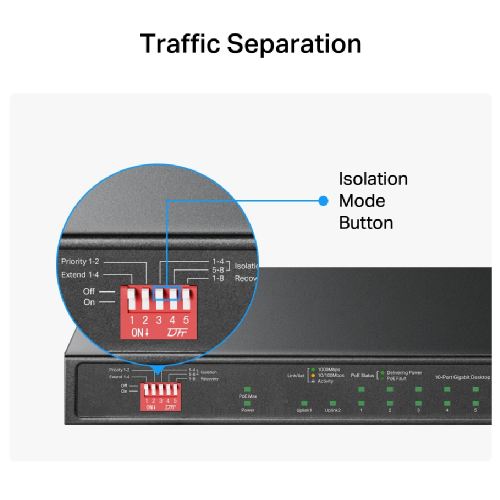

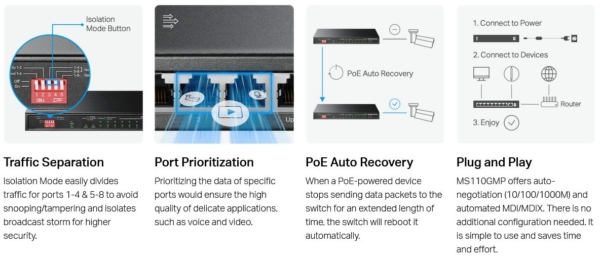

● Isolation Mode: One click to divide traffic for specific ports for stability and security

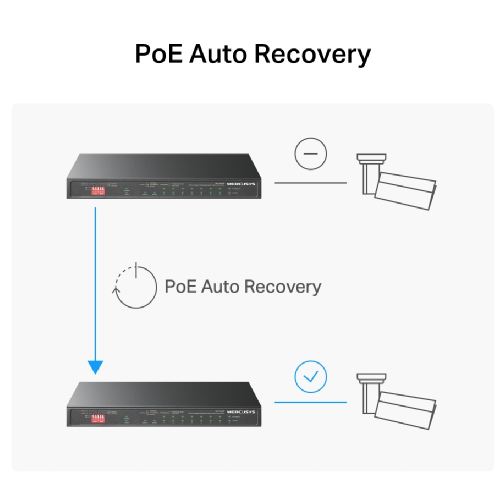

● PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

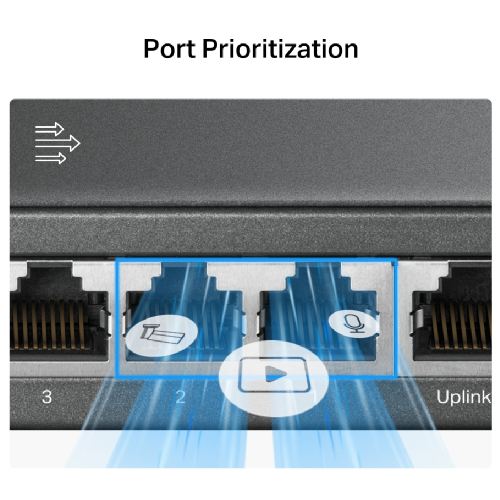

● Priority Mode: Ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

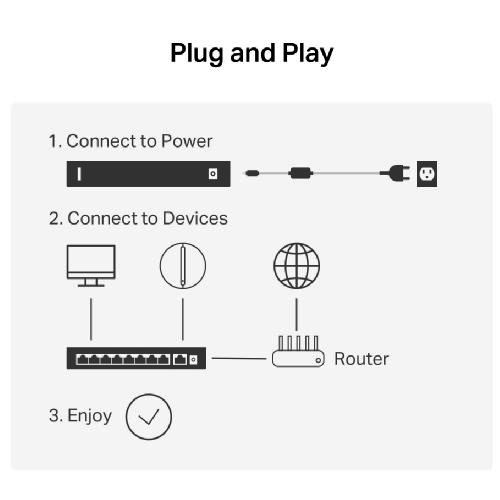

● Plug and Play: Simple to use and saves time and effort
Package Contents:

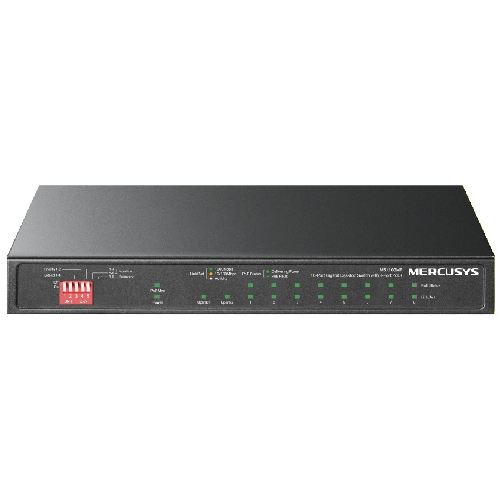

• 10-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110GMP)
• Power Adapter
• Rubber Feet
• Quick Installation Guide
| Specifications: | |
| Hardware | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, |
| IEEE 802.3af, IEEE 802.3at | |
| Dimensions | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| PoE Ports | RJ45 Ports |
| • Standard: 802.3 af/at compliant | |
| • PoE Ports: Ports 1–8 | |
| • Power Supply: 111 W | |
| Interfaces | • 8× 10/100/1000 Mbps PoE+ Ports |
| • 2× 1000 Mbps RJ45 Ports | |
| • AUTO Negotiation | |
| • AUTO MDI/MDIX | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| • EIA/TIA-568 100Ω STP (maximum 100m) | |
| External Power Supply | External Power Adapter (Output: 54VDC / 2.22A) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 4K |
| Max Power Consumption | • 7.37 W (220V / 50Hz with no PD connected) |
| • 129.4 W (220V / 50Hz with 111 W PD connected) | |
| Max Heat Dissipation | • 441.39 BTU/h (110V / 60Hz with 111 W PD connected) |
| • 439.96 BTU/h (220V / 50Hz with 111 W PD connected) | |
| Software | |
| Transfer Method | Store-And-Forward |
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs |
| • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply | |
| and data transmission) | |
| • Priority Mode Button (Ports 1–2) | |
| • Isolation Mode Button (Ports 1–4 / 5-8) | |
| • PoE Auto Recovery (Ports 1-8) | |
| • MAC Address Auto-Learning and Auto-Aging | |
| • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure | |
| for Half-Duplex Mode | |
| Performance | |
| Packet Forwarding Rate | 14.88 Mpps |
| Others | |
| Certifications | CE, RoHS |
| Package Contents | • MS110GMP |
| • Power Adapter | |
| • Installation Guide | |
| Environment | • Operating Temperature: -10℃~40℃ (14℉~104℉) |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
| _ | |
| MERCUSYS |
Brand
Brand
Mercusys
