Feedhorns

Feedhorns

Ortho Mode Transducer
		SWEDISH MICROWAVE
		SMW OMT 30 orthomode
		–
		OMT 30 receives two polarizations with high
		cross polarization (isolation) and minimal
		transmission loss.
–
Frequency range: 10.7~14.5 GHz Vertical & 10.7~12.75 GHz Horizontal
SWR: 1.5:1max
Transmission loss: 0.1 dB
Isolation (Cross polarization): 31.5 dB min
Input: Circular waveguide 18 mm
Output: WR75 waveguides
Material: Zinc
Weight: 200 g

UNIVERSAL BAND FEED HORN
		FC120A
		Adjustable feedhorn for prime focus LNBs
		Offers an adjustable beamwidth from 0.32 to 0.43
		–
		–

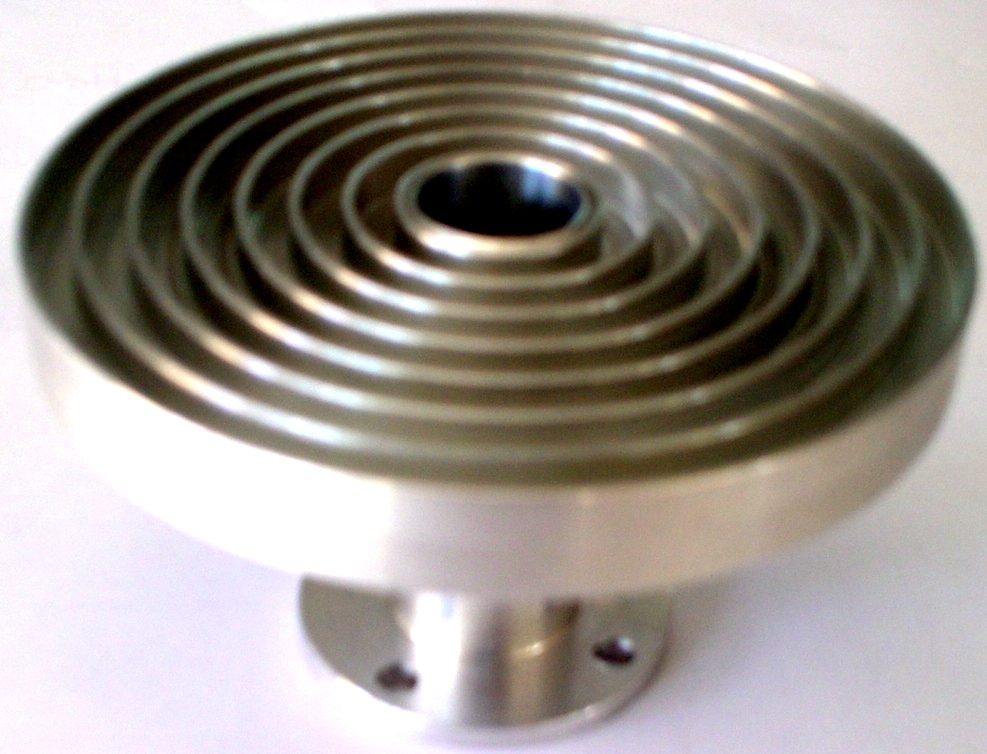

		FC120B
		Large adjustable feedhorn for prime focus LNBs
		Offers an adjustable beamwidth from 0.32 to 0.43
		–
		–
		–

		FC120J
		Fixed feedhorn for prime focus LNBs
		–
		–
		–

CIRCULAR BAND FEED HORN

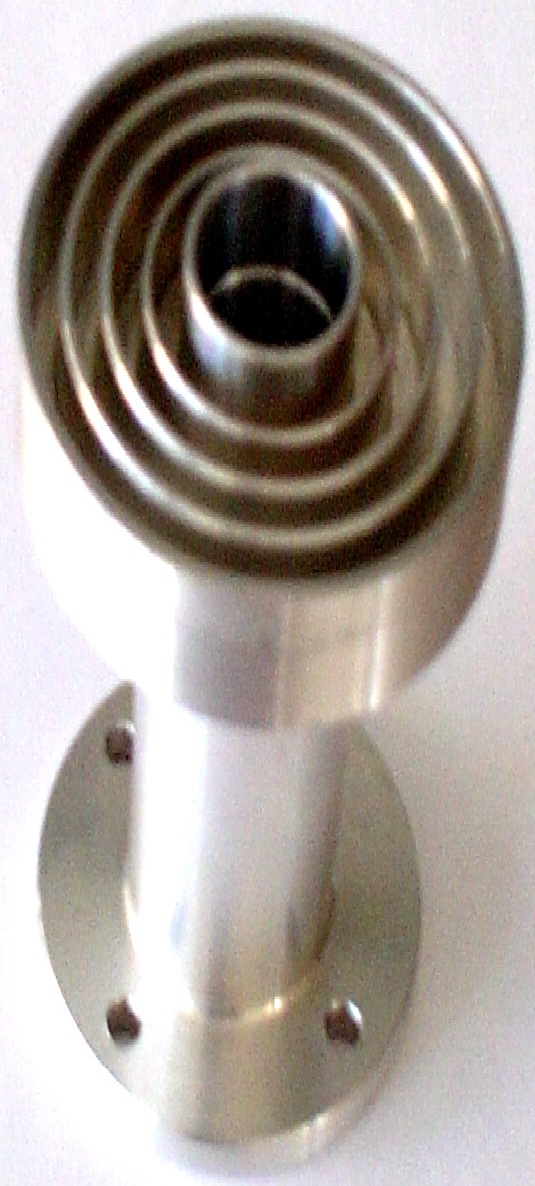

		FC120N
		Fixed feedhorn for prime focus LNBs
		–
		–
		–
		–
